The 2019 Suzuki DR-Z400 (specifically the DR-Z400S dual-sport model, as it’s the primary street-legal variant referred to in most contexts; the SM is the supermoto version) features a narrow, lightweight frame designed for excellent torsional rigidity while keeping overall weight minimal—key traits that have made the DR-Z400 platform enduringly popular for dual-sport, trail, and light off-road use.

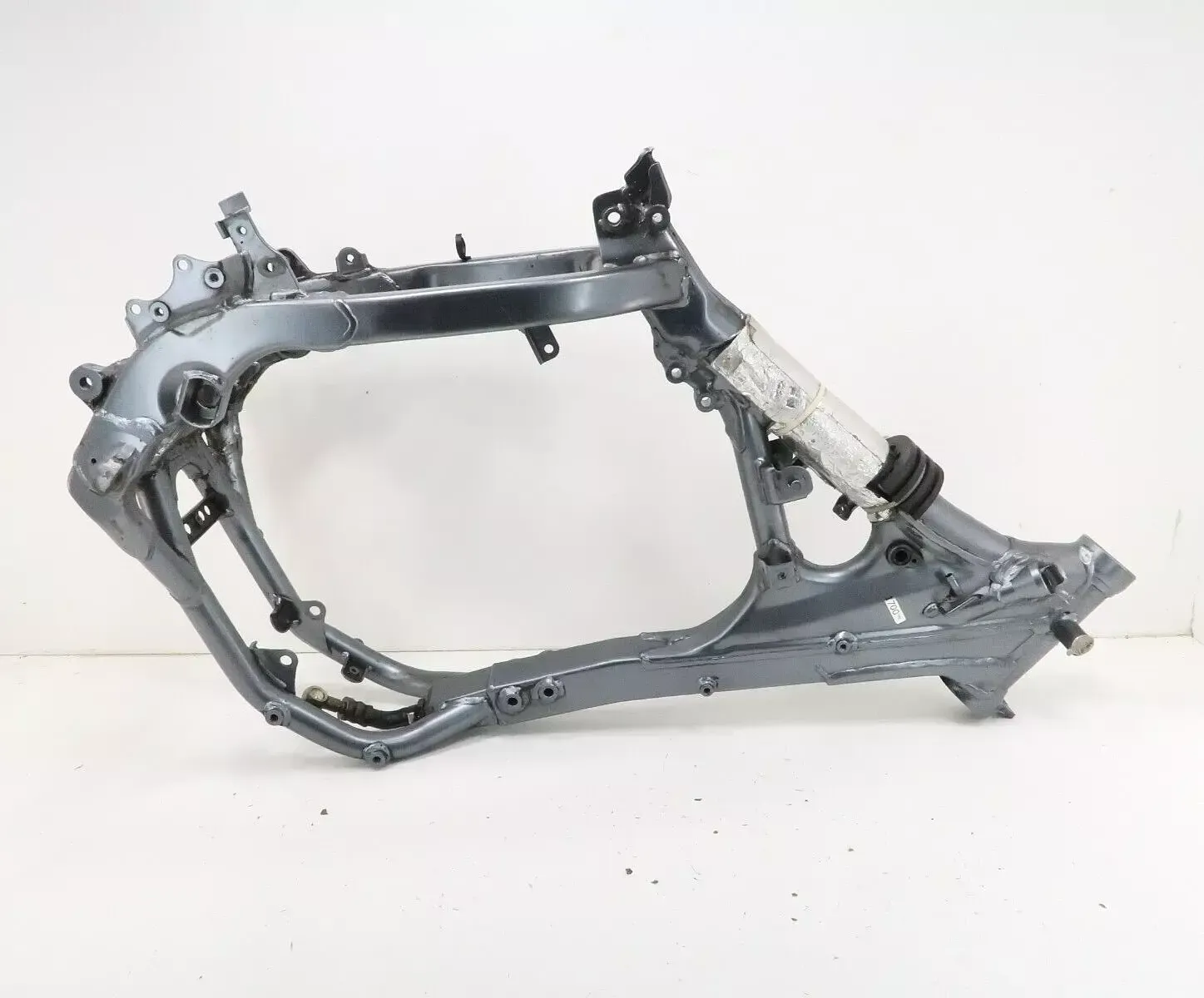

The main frame is constructed from thin-wall chrome-moly steel tubing (chromium-molybdenum steel, often abbreviated as chromoly or CrMo). This material choice provides a strong, durable structure with good flex characteristics that suit the bike’s intended mix of on-road stability and off-road compliance, rather than a fully rigid aluminum design seen on some more race-oriented bikes. Chromoly offers an excellent strength-to-weight ratio, contributing to the bike’s nimble handling and reliability under abuse.
The frame design is a semi-perimeter or diamond-style layout (sometimes described as a single front down tube configuration in related models), with carefully selected tube thicknesses and shapes to balance torsional stiffness (resistance to twisting forces) and controlled flex for better traction and rider feel on uneven terrain. A notable engineering feature is that the backbone tube, front down tube, and steering head gussets are integrated to form the dry-sump engine’s oil tank, which helps reduce overall bulk, lower the center of gravity slightly, and eliminate the need for a separate oil reservoir—optimizing space and weight in the compact chassis.
To further reduce weight and improve serviceability (e.g., easier rear suspension access or subframe removal), the rear subframe is a bolt-on aluminum type (aluminum alloy), which contrasts with the steel main frame and contributes to a trim rear end appearance while simplifying maintenance tasks like seat/tank removal or fender work.
Overall, this frame contributes to the DR-Z400’s reputation as a rugged, versatile platform:
It supports long-travel suspension (telescopic front fork and link-type rear shock, both adjustable).
It keeps the bike narrow for good stand-up ergonomics and maneuverability in tight trails.
It provides a solid foundation for the 398cc liquid-cooled single-cylinder engine’s power delivery without excess flex or harshness.
This construction remained largely consistent across DR-Z400S models from the early 2000s through 2024 (before the major 2025 redesign to the DR-Z4 series, which introduced a new twin-spar steel frame). No major frame changes occurred specifically for the 2019 model year—it carried over the proven design from prior years.
If you’re looking for visuals of the frame (e.g., exposed views, diagrams, or close-ups showing the tubing and gussets), let me know for specific image references!
